Welcome to our short tutorial, that will guide you through most of the features of the Xpert-Timer. The tour shows the most important steps from creating a project to billing in the Xpert-Timer:

tog_minus        Create a new project

Click on the icon document_add in order to add a new project.

pm_neues_projekt

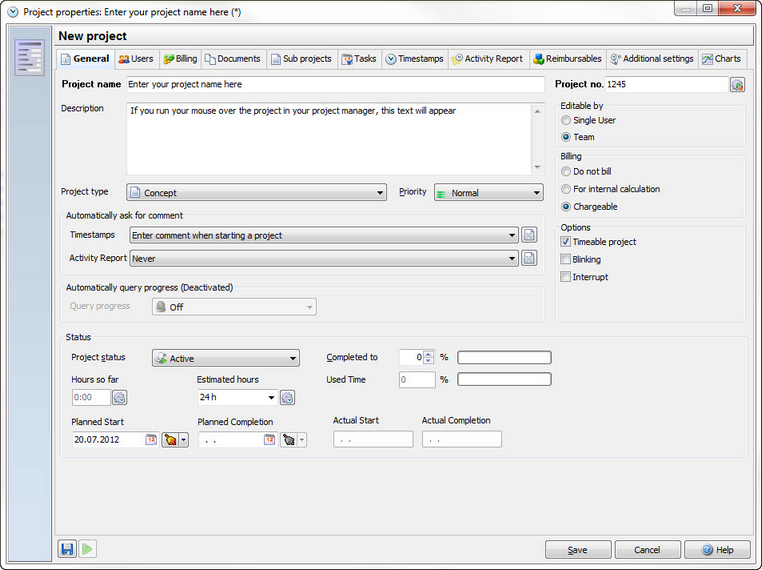

Following dialog will open. Fill in a name for a main project, for example "Support" and assign an optional project number.

new_project

Project settings

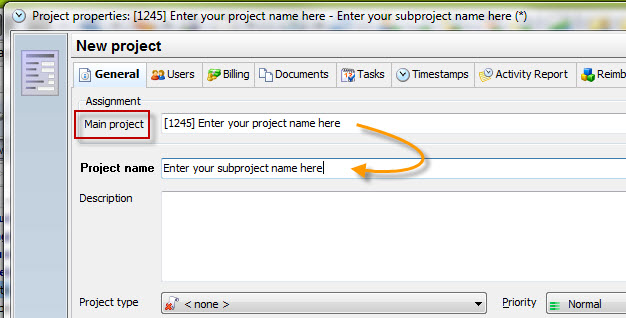

First of all you need to create a main project. If you need multiple subprojects, just mark your main project with the mouse in your project manager and hit "Create new project" again. Xpert-Timer automatically detects, that you now want to enter a subproject.

subproject

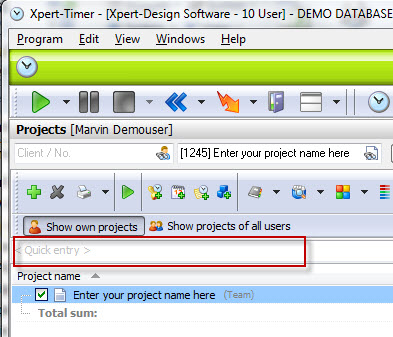

You can also use the "Quick Entry" to enter your projects. Mark the main project in your project manager and enter the name of the sub project.

quick_entry

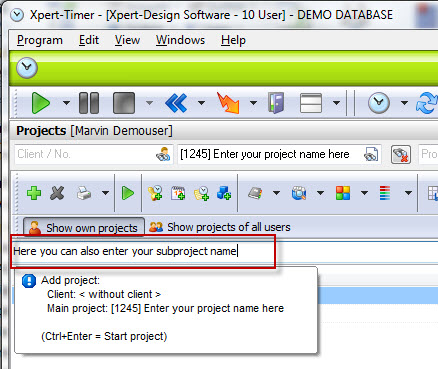

As soon as you type something into this field, Xpert-Timer will display how it will create the project. In our example, it will create a sub project to the main project "Enter your project name here".

quick_entry_filled

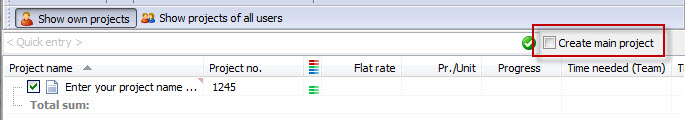

In case you want to create a new main project, check the box "Create main project" to the far right.

create_main_project

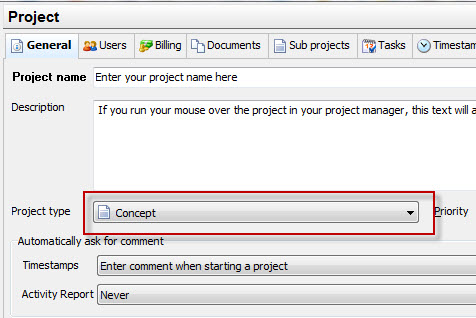

Select a project type in the project properties. You can create your own project types in the configuration of Xpert-Timer. Project types can be used as a filter criterion in your reporting. For example, you can display all projects with the project type "Concept" in a certain date range.

project_type

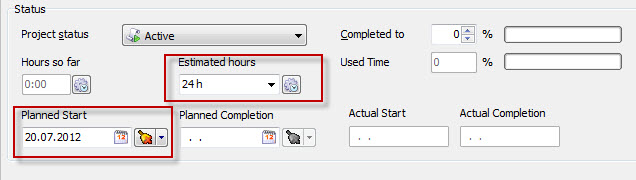

The next step for a good project management is to estimate the duration of your project. You can also add a date for the start of your project and a planned completion date. This helps to keep track of your running projects and lets you evaluate your estimation later on.

planned_start

Billing

Choose between three options:

billing

Not chargeable: This project can not be billed to a client and is not included in the daily working time. For example: Private phone calls or lunch break.

For internal calculation: This project is not calculated into the time for the client to be billed (Price is 0.00), but is still calculated for internal reasons. This could be for example a support project of a client with a support contract. The client does not get billed for the support time, but the manager still wants to know how much time was spent for the support.

Chargeable: This project is calculated in your total working hours, and the internal and price for the client is calculated. This is usually the standard setting for your projects, even if you never bill a client.

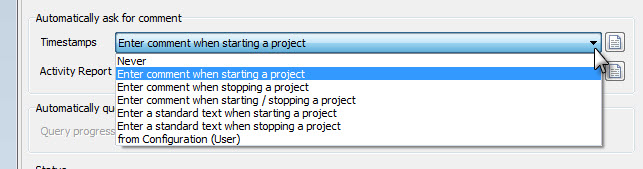

In the project settings, you can decide to have Xpert-Timer automatically ask you for a timestamp comment in certain occasions. Chose the appropriate for you. This also works with the Activity Report. .

timestamp_comment_question

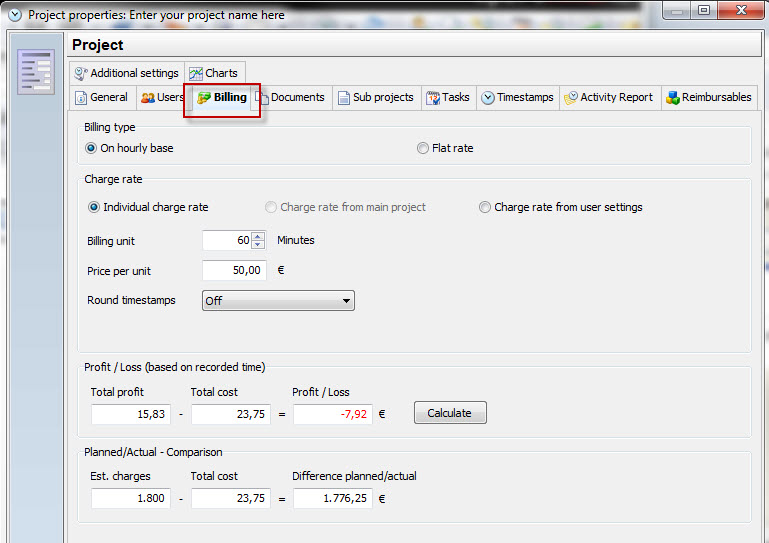

In the tab "Billing" you can enter the project specific billing rates. These can either be pulled from the main project, the rate you entered in the user settings, or have its' own billing rate. In our example, the project has its' own billing rate at 50 Euro per 60 minutes.

project_settings_billing

Save your settings and you can start timing the project. No worries about all the other tabs. For simple time tracking you don't need them in the beginning. But of course they are discussed in the manual in other chapters.

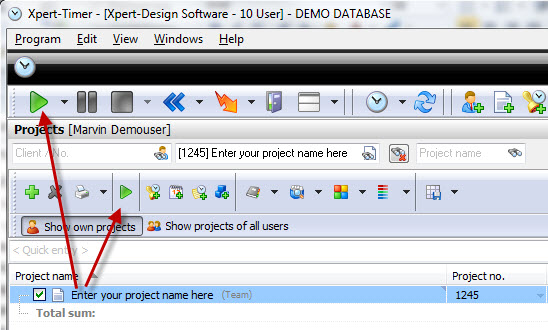

If you click on play you can start the timer on your desktop.

start_project

tog_minus        The timebar

Now the time on the time bar starts running as well. You can always see the current running project on the time bar.

Depending on the configuration of the time bar, you see the buttons, your name, the project name, the duration, countdown, charges,running time of the project and your current daily working hours.

In our case the Example project has been running for 20 minutes. Please note, there's no seconds in Xpert-Timer.

timebar_current_session

Right click on the time to switch through different sums. For example: Total daily sum, project sum...

If you don't want the time bar blocking other windows on your desktop, hold down the Ctrl key and run the mouse over the time bar. It will jump out of the way. In order to activate this function you need to check the option "Hide time bar when Ctrl + mouse cursor contact" in the configuration.

If you double click on the project name, the project settings will open.

tog_minus        Shortcuts save time

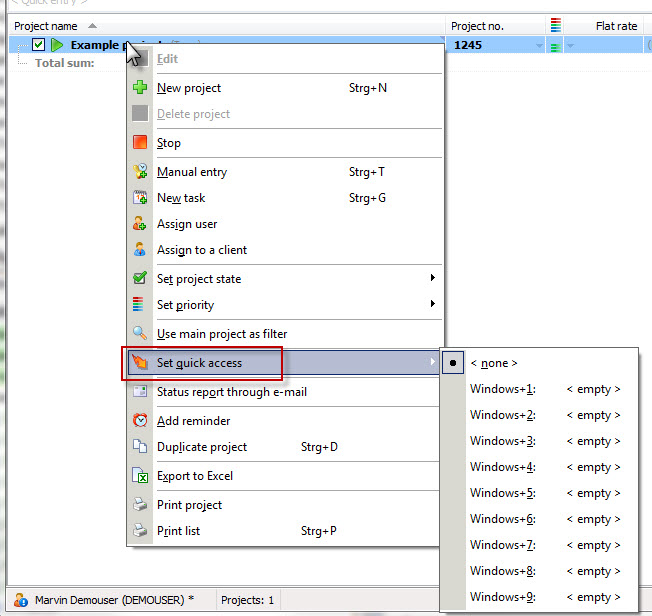

After you added new projects, assign them to certain hotkeys. Right click on a project, choose "Set quick access" and assign a combination to your project. This way it is much easier to change from one project to another.

shortcut



lightbulb_on

Shortcut to main project

If you create a shortcut to your main project, a little box with your sub projects will pop up, when you hit the
shortcut for your main project. By hitting the number in front of the sub projects, you can select them and the time
will start running.

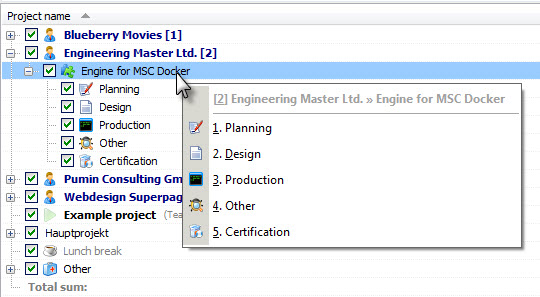

In this example I used the shortcut for the main project "Engine for MSC Docker", which opened a list of available sub projects. By hitting number 3, I'd start the project "Production". Please note, that the Windows key, using Windows7, won't work as a shortcut. You'd need to change the shortcut combination in the configuration of Xpert-Timer.



shortcut_mainproject

tog_minus        Timestamps

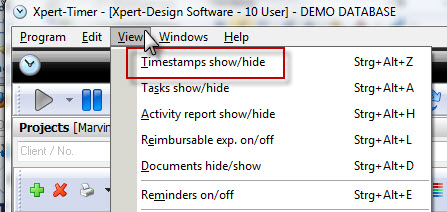

Optionally, you can view your timestamp in the project manager. These will appear in a list, either horizontally or vertically in your project manager.

show_timestamps

The narrow green line on the left side of the timestamp appears, when all listed timestamps are in order, meaning they have no gaps. If there are any gaps in the time stamps no line will appear and if the times are overlapping, the marker is red.

green_marker

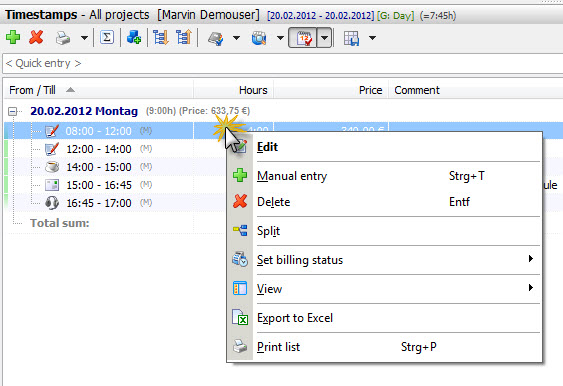

If you right click a timestamp, you get following menu:

rightclick_timestamp

You can manually edit your timestamp.

If you want to merge or split your timestamps, you can do this, too. Please note that you can only merge timestamps of the same project. If you split a timestamp, you'll be asked when to split it. If you need further information on this function, point to the chapter "Timestamps"

If you want to keep track of your billed timestamps, you can set the billing status for certain timestamps to "Billed".

Print timestamps

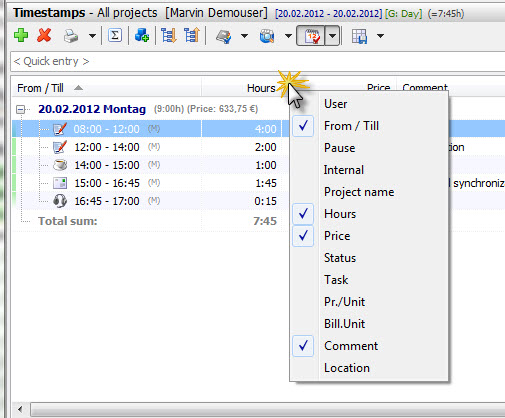

You can print your timestamps any time the way they are filtered in the project manager. Group them or filter them by using the menu buttons and show/hide columns by right clicking on the column header.

show_columns

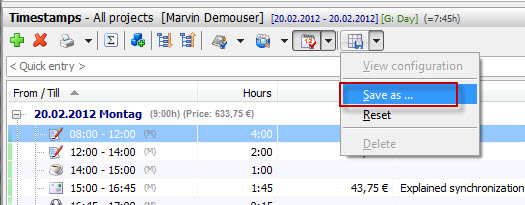

Use the "Save view" button to save all your filter settings. Use the button later again, to chose from saved settings.

save_settings



tog_minus        Comments on timestamps

In order to keep perfectly track of everything you are working on, you can create comments to your timestamps. The timestamp list is shown in your project manager by default, but can be hidden if wanted.

Point to 'View' -> 'Timestamps' and decide to show them vertically or horizontally.

In the project settings you can decide to be asked to enter a comment on different status changes. For example: Enter comment on every project stop.

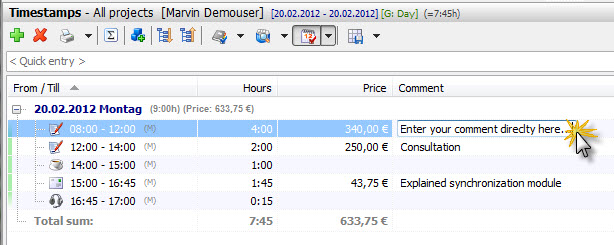

You can directly enter a comment in your timestamp list, when you mark the timestamp and hit F2 or click on the comment field. You can also copy a timestamp comment using Ctrl+s for copy and Ctrl+v for paste.

enter_comment_directly

You can print your timestamps any time the way they are filtered in the project manager. Group them or filter them by using the menu buttons and show/hide columns by right clicking on the column header.

show_columns

tog_minus        Activity Report

To follow the development of your project, you can either use timestamp comments or the activity report. Double click on a project and choose "Activity report" in order to add an entry. You can also hit Win+F12 in order to add a new entry.The activity report is not based on timestamps. So it only makes sense to use it, if your entries don't need to be documented together with the timestamp. If you need to know exactly what you did at what specific time, you need to work with the comments on timestamps.

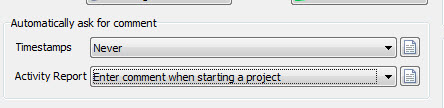

You can decide, if you want the application to ask automatically you for an activity report entry as soon as you start timing another project or shutdown the Xpert-Timer. You can change the setting in the configuration.

comment_history

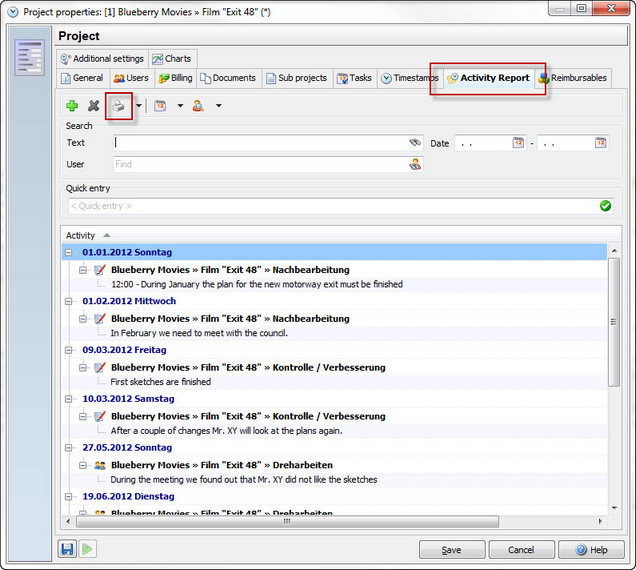

Of course you can print the activity report.

activity_report_quick_overview

tog_minus        Add a new task in your To-Do list

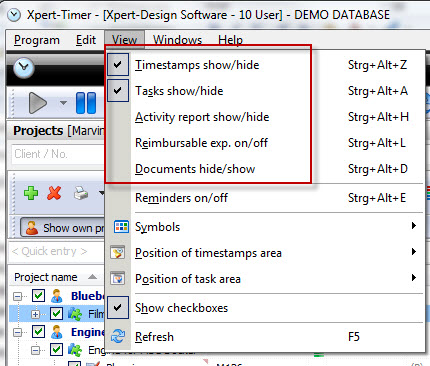

Use the "View" menu to display certain areas in your project manager.

view_meu

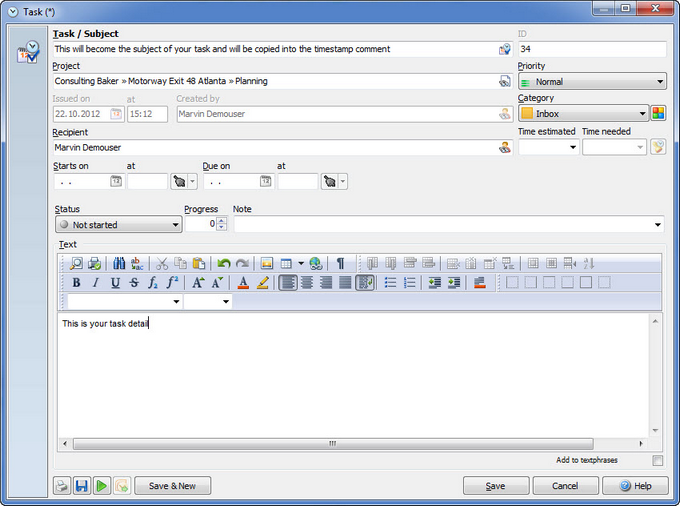

First assign a name to your task. This subject will also be displayed in your To-Do list. The ID number is assigned automatically and can be used for reference, e.g. in meetings.

neue_aufgabe

It's necessary to link the task to a certain project.

The priority of tasks range from "Low" to "Immediately". For priority "Immediately" the fields "Due Date" and "Starts at" are irrelevant, because the task needs to be worked on immediately.
In the task list, you can sort your tasks by priority by clicking on the column header..

Enter the person who is supposed to fullfil the task. You can also enter part of the name and press "Enter" on your keyboard. Xpert-Timer then selects the appropriate employees.

In order to keep track of all your tasks and sort them, you can use categories. Those categories can be renamed in the configuration dialog of Xpert-Timer. You can then filter your tasks by category in your To-Do list.

If you want a certain task to be displayed at a certain date, you need to enter a date in the field "Starts from". Only when you reach this date, the task will be displayed in your personal To-Do list.

A due date is necessary if you need a certain task to be finished at a certain date.

You can also estimate the duration of the task for your reference. If you need to print the duration, right-click on a column header and show the duration column.

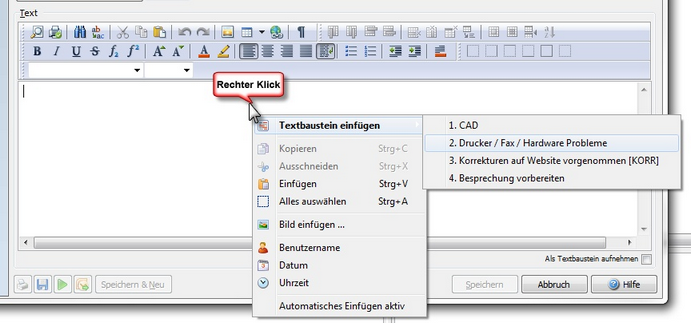

Last but not least you can enter a description of the task. You can use text phrases by right-clicking into the text field. Multiple other functions are available in the context menu. E.g. entering the username, date, time and may more

aufgabenliste_rechtsklick

If your right-click on a task you get the context menu with many options. Point to "Start task" in order to start the timestamp. If you want to edit the comment of the timestamp you can also hit Win+F4. This will open a dialog where you can edit the start time and comment.

You can also set the priority, the category and the task state here. The task will automatically set to the state "In progress" if you click on "Start Task".

You can move your tasks by dragging&dropping at any time. This makes it easy to arrange them. For example, just drag one task from one category into another...easy!

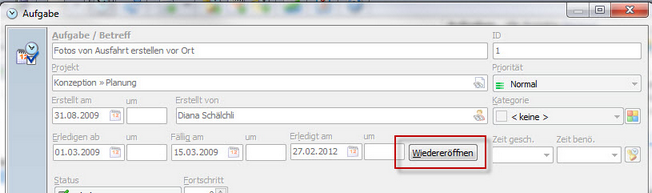

To reopen tasks click on the the appropriate button in the Task dialog:

aufgabe_wiedereröffnen

Visit the chapter "To-Do list" in order to find out more functions.

tog_minus        The Reporting Module

The next dialog we discuss is the reporting. Even if you get almost all necessary reports printed by your timestamp list, the reporting module again offers you an overview of your project times. In order to open the Reporting Module click on the reporting button in your button menu of your Project Manager.

auswertung_menuepunkt

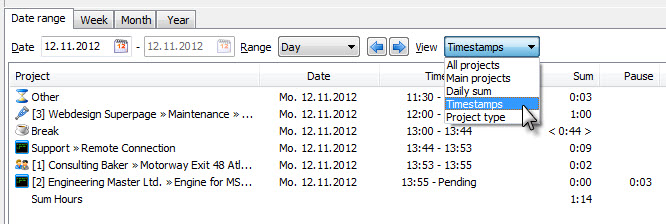

Im Dialog haben Sie folgende Möglichkeiten:

auswertung_tagessumme

You can sort your reports by day, week, month, year or a certain date range by clicking on the tab. Only projects that ran during that time period will be displayed.

Double check your settings in the "Settings" dialog, to make sure, the correct filters are set.

Thanks for reading this quick overview of Xpert-Timer.
